DES¶

Basic Introduction¶

Data Encryption Standard (DES) is a typical block cipher. Its basic information is as follows:

Input: 64 bits.
Output: 64 bits.
Key: 64 bits, using 56 of the 64 key bits; the remaining 8 bits are either discarded or used as parity check bits.
Feistel iterative structure
- Plaintext undergoes 16 rounds of iteration to produce the ciphertext.
- Ciphertext undergoes a similar 16 rounds of iteration to recover the plaintext.

Basic Process¶

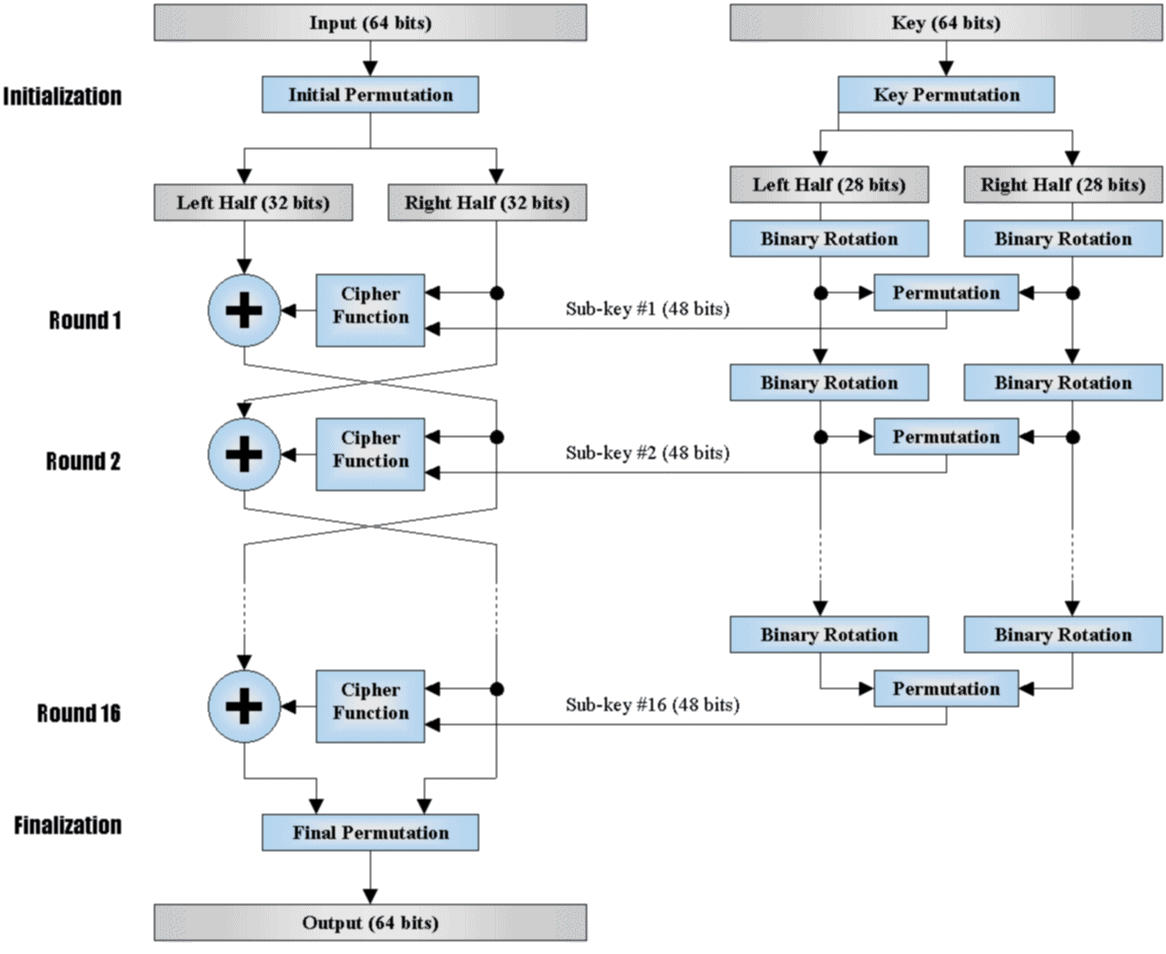

Here is a simple DES flowchart.

Encryption¶

Let us consider the encryption process in each round:

$L_{i+1}=R_i$

$R_{i+1}=L_i\oplus F(R_i,K_i)$

Then, before the final Permutation, the corresponding ciphertext is $(R_{n+1},L_{n+1})$ .

Decryption¶

How is decryption performed? First, we apply the inverse permutation to the ciphertext to obtain the output of the last round. Then we consider each round:

$R_i=L_{i+1}$

$L_i=R_{i+1}\oplus F(L_{i+1},K_i)$

Therefore, $(L_0,R_0)$ is the plaintext after the initial permutation during encryption. We only need to apply the inverse permutation to obtain the original plaintext.

As we can see, DES encryption and decryption use the same logic — only the order in which the keys are used differs.

Core Components¶

The core components of DES mainly include (only the encryption process is given here):

Initial Permutation
F function
- E expansion function
- S-boxes (design criteria were not published)
- P permutation
Final Permutation

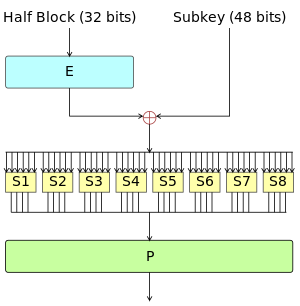

The F function is as follows:

If you are more interested in DES, you are encouraged to study it in greater detail. PRs are welcome.

Derivatives¶

Based on DES, the following two encryption schemes were derived:

Double DES
Triple DES

Double DES¶

Double DES uses two keys with a total length of 112 bits. The encryption method is as follows:

$C=E_{k2}(E_{k1}(P))$

However, Double DES cannot resist a meet-in-the-middle attack. We can construct the following two sets:

$I={E_{k1}(P)}$

$J=D_{k2}(C)$

That is, we enumerate K1 and K2 to encrypt P and decrypt C, respectively.

After we finish encrypting P, we can sort the encryption results. The complexity of this step is $2^nlog(2^n)=O(n2^n)$ .

When decrypting C, we can look up each decrypted result in the corresponding table.

The overall complexity is still $O(n2^n)$ .

Triple DES¶

The encryption and decryption methods for Triple DES are as follows:

$C=E_{k3}(D_{k2}(E_{k1}(P)))$

$P=D_{k1}(E_{k2}(D_{k3}(C)))$

When choosing keys, there are two options:

3 different keys: k1, k2, k3 are mutually independent, totaling 168 bits.
2 different keys: k1 and k2 are independent, k3=k1, totaling 112 bits.

Attack Methods¶

Differential attack
Linear attack

2018 N1CTF N1ES¶

The basic code is as follows:

# -*- coding: utf-8 -*-
def round_add(a, b):
    f = lambda x, y: x + y - 2 * (x & y)
    res = ''
    for i in range(len(a)):
        res += chr(f(ord(a[i]), ord(b[i])))
    return res

def permutate(table, block):
    return list(map(lambda x: block[x], table))

def string_to_bits(data):
    data = [ord(c) for c in data]
    l = len(data) * 8
    result = [0] * l
    pos = 0
    for ch in data:
        for i in range(0,8):
            result[(pos<<3)+i] = (ch>>i) & 1
        pos += 1
    return result

s_box = [54, 132, 138, 83, 16, 73, 187, 84, 146, 30, 95, 21, 148, 63, 65, 189, 188, 151, 72, 161, 116, 63, 161, 91, 37, 24, 126, 107, 87, 30, 117, 185, 98, 90, 0, 42, 140, 70, 86, 0, 42, 150, 54, 22, 144, 153, 36, 90, 149, 54, 156, 8, 59, 40, 110, 56,1, 84, 103, 22, 65, 17, 190, 41, 99, 151, 119, 124, 68, 17, 166, 125, 95, 65, 105, 133, 49, 19, 138, 29, 110, 7, 81, 134, 70, 87, 180, 78, 175, 108, 26, 121, 74, 29, 68, 162, 142, 177, 143, 86, 129, 101, 117, 41, 57, 34, 177, 103, 61, 135, 191, 74, 69, 147, 90, 49, 135, 124, 106, 19, 8
9, 38, 21, 41, 17, 155, 83, 38, 159, 179, 19, 157, 68, 105, 151, 166, 171, 122, 179, 114, 52, 183, 89, 107, 113, 65, 161, 141, 18, 121, 95, 4, 95, 101, 81, 156,
 17, 190, 38, 84, 9, 171, 180, 59, 45, 15, 34, 89, 75, 164, 190, 140, 6, 41, 188, 77, 165, 105, 5, 107, 31, 183, 107, 141, 66, 63, 10, 9, 125, 50, 2, 153, 156, 162, 186, 76, 158, 153, 117, 9, 77, 156, 11, 145, 12, 169, 52, 57, 161, 7, 158, 110, 191, 43, 82, 186, 49, 102, 166, 31, 41, 5, 189, 27]

def generate(o):
    k = permutate(s_box,o)
    b = []
    for i in range(0, len(k), 7):
        b.append(k[i:i+7] + [1])
    c = []
    for i in range(32):
        pos = 0
        x = 0
        for j in b[i]:
            x += (j<<pos)
            pos += 1
        c.append((0x10001**x) % (0x7f))
    return c



class N1ES:
    def __init__(self, key):
        if (len(key) != 24 or isinstance(key, bytes) == False ):
            raise Exception("key must be 24 bytes long")
        self.key = key
        self.gen_subkey()

    def gen_subkey(self):
        o = string_to_bits(self.key)
        k = []
        for i in range(8):
            o = generate(o)
            k.extend(o)
            o = string_to_bits([chr(c) for c in o[0:24]])
        self.Kn = []
        for i in range(32):
            self.Kn.append(map(chr, k[i * 8: i * 8 + 8]))
        return

    def encrypt(self, plaintext):
        if (len(plaintext) % 16 != 0 or isinstance(plaintext, bytes) == False):
            raise Exception("plaintext must be a multiple of 16 in length")
        res = ''
        for i in range(len(plaintext) / 16):
            block = plaintext[i * 16:(i + 1) * 16]
            L = block[:8]
            R = block[8:]
            for round_cnt in range(32):
                L, R = R, (round_add(L, self.Kn[round_cnt]))
            L, R = R, L
            res += L + R
        return res

Clearly, we can view this as a Feistel encryption scheme. The decryption function is as follows:

    def decrypt(self,ciphertext):
        res = ''
        for i in range(len(ciphertext) / 16):
            block = ciphertext[i * 16:(i + 1) * 16]
            L = block[:8]
            R = block[8:]
            for round_cnt in range(32):
                L, R =R, (round_add(L, self.Kn[31-round_cnt]))
            L,R=R,L
            res += L + R
        return res

The final result is:

➜  baby_N1ES cat challenge.py
from N1ES import N1ES
import base64
key = "wxy191iss00000000000cute"
n1es = N1ES(key)
flag = "N1CTF{*****************************************}"
cipher = n1es.encrypt(flag)
#print base64.b64encode(cipher)  # HRlgC2ReHW1/WRk2DikfNBo1dl1XZBJrRR9qECMNOjNHDktBJSxcI1hZIz07YjVx
cipher = 'HRlgC2ReHW1/WRk2DikfNBo1dl1XZBJrRR9qECMNOjNHDktBJSxcI1hZIz07YjVx'
cipher = base64.b64decode(cipher)
print n1es.decrypt(cipher)
➜  baby_N1ES python challenge.py
N1CTF{F3istel_n3tw0rk_c4n_b3_ea5i1y_s0lv3d_/--/}

2019 CISCN part_des¶

The challenge provides only one file:

Round n part_encode-> 0x92d915250119e12b
Key map -> 0xe0be661032d5f0b676f82095e4d67623628fe6d376363183aed373a60167af537b46abc2af53d97485591f5bd94b944a3f49d94897ea1f699d1cdc291f2d9d4a5c705f2cad89e938dbacaca15e10d8aeaed90236f0be2e954a8cf0bea6112e84

Considering the challenge name and data characteristics, Round n part_encode is the intermediate result after executing n rounds of DES, and Key map should be the DES subkeys. To recover the plaintext, we only need to reverse the n-round DES encryption process. Note the following three points during decryption:

Subkey selection: For an encryption result that has only undergone n rounds, decryption should use keys n, n-1, ..., 1 in order.
Operations after the last round of DES: The incomplete DES has not performed the swap of the left and right halves and the inverse initial permutation, so during decryption we should first apply these two operations to the ciphertext.
Choice of n: In this challenge, we don't know n, but that doesn't matter — we can try all possible values (0–15). The flag should be an ASCII string.

Solution Code

kkk = 16
def bit_rot_left(lst, pos):
    return lst[pos:] + lst[:pos]

class DES:
    IP = [
            58,50,42,34,26,18,10,2,60,52,44,36,28,20,12,4,
            62,54,46,38,30,22,14,6,64,56,48,40,32,24,16,8,
            57,49,41,33,25,17,9,1,59,51,43,35,27,19,11,3,
            61,53,45,37,29,21,13,5,63,55,47,39,31,23,15,7
        ]
    IP_re = [
            40,8,48,16,56,24,64,32,39,7,47,15,55,23,63,31,
            38,6,46,14,54,22,62,30,37,5,45,13,53,21,61,29,
            36,4,44,12,52,20,60,28,35,3,43,11,51,19,59,27,
            34,2,42,10,50,18,58,26,33,1,41,9,49,17,57,25
        ]
    Pbox = [
            16,7,20,21,29,12,28,17,1,15,23,26,5,18,31,10,
            2,8,24,14,32,27,3,9,19,13,30,6,22,11,4,25
        ]
    E = [
            32,1,2,3,4,5,4,5,6,7,8,9,
            8,9,10,11,12,13,12,13,14,15,16,17,
            16,17,18,19,20,21,20,21,22,23,24,25,
            24,25,26,27,28,29,28,29,30,31,32,1
        ]
    PC1 = [
                57,49,41,33,25,17,9,1,58,50,42,34,26,18,
                10,2,59,51,43,35,27,19,11,3,60,52,44,36,
                63,55,47,39,31,23,15,7,62,54,46,38,30,22,
                14,6,61,53,45,37,29,21,13,5,28,20,12,4
        ]
    PC2 = [
            14,17,11,24,1,5,3,28,15,6,21,10,
            23,19,12,4,26,8,16,7,27,20,13,2,
            41,52,31,37,47,55,30,40,51,45,33,48,
            44,49,39,56,34,53,46,42,50,36,29,32
        ]
    Sbox = [
            [
                [14,4,13,1,2,15,11,8,3,10,6,12,5,9,0,7],
                [0,15,7,4,14,2,13,1,10,6,12,11,9,5,3,8],
                [4,1,14,8,13,6,2,11,15,12,9,7,3,10,5,0],
                [15,12,8,2,4,9,1,7,5,11,3,14,10,0,6,13],
            ],
            [
                [15,1,8,14,6,11,3,4,9,7,2,13,12,0,5,10],
                [3,13,4,7,15,2,8,14,12,0,1,10,6,9,11,5],
                [0,14,7,11,10,4,13,1,5,8,12,6,9,3,2,15],
                [13,8,10,1,3,15,4,2,11,6,7,12,0,5,14,9],
            ],
            [
                [10,0,9,14,6,3,15,5,1,13,12,7,11,4,2,8],
                [13,7,0,9,3,4,6,10,2,8,5,14,12,11,15,1],
                [13,6,4,9,8,15,3,0,11,1,2,12,5,10,14,7],
                [1,10,13,0,6,9,8,7,4,15,14,3,11,5,2,12],
            ],
            [
                [7,13,14,3,0,6,9,10,1,2,8,5,11,12,4,15],
                [13,8,11,5,6,15,0,3,4,7,2,12,1,10,14,9],
                [10,6,9,0,12,11,7,13,15,1,3,14,5,2,8,4],
                [3,15,0,6,10,1,13,8,9,4,5,11,12,7,2,14],
            ],
            [
                [2,12,4,1,7,10,11,6,8,5,3,15,13,0,14,9],
                [14,11,2,12,4,7,13,1,5,0,15,10,3,9,8,6],
                [4,2,1,11,10,13,7,8,15,9,12,5,6,3,0,14],
                [11,8,12,7,1,14,2,13,6,15,0,9,10,4,5,3],
            ],
            [
                [12,1,10,15,9,2,6,8,0,13,3,4,14,7,5,11],
                [10,15,4,2,7,12,9,5,6,1,13,14,0,11,3,8],
                [9,14,15,5,2,8,12,3,7,0,4,10,1,13,11,6],
                [4,3,2,12,9,5,15,10,11,14,1,7,6,0,8,13],
            ],
            [
                [4,11,2,14,15,0,8,13,3,12,9,7,5,10,6,1],
                [13,0,11,7,4,9,1,10,14,3,5,12,2,15,8,6],
                [1,4,11,13,12,3,7,14,10,15,6,8,0,5,9,2],
                [6,11,13,8,1,4,10,7,9,5,0,15,14,2,3,12],
            ],
            [
                [13,2,8,4,6,15,11,1,10,9,3,14,5,0,12,7],
                [1,15,13,8,10,3,7,4,12,5,6,11,0,14,9,2],
                [7,11,4,1,9,12,14,2,0,6,10,13,15,3,5,8],
                [2,1,14,7,4,10,8,13,15,12,9,0,3,5,6,11],
            ]
        ]
    rout = [1,1,2,2,2,2,2,2,1,2,2,2,2,2,2,1]
    def __init__(self):
        self.subkey = [[[1, 1, 1, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 1, 1, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 1, 0, 1, 0, 1], [1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 1], [1, 1, 1, 0, 0, 1, 0, 0, 1, 1, 0, 1, 0, 1, 1, 0, 0, 1, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 1, 0, 0, 0, 1, 1, 1, 1], [1, 1, 1, 0, 0, 1, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 1, 1, 0, 1, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1], [1, 0, 1, 0, 1, 1, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 1, 1, 0, 0, 1, 1, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 0, 0, 1, 1, 1], [1, 0, 1, 0, 1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 1, 0, 1, 1, 1, 1, 0, 1, 1, 0, 1, 0, 0, 0, 1, 1, 0, 1, 0, 1, 0, 1, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0], [1, 0, 1, 0, 1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 1, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1], [0, 0, 0, 1, 1, 1, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 1, 1, 1, 0, 0, 1, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0], [0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 1, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 1, 1, 1, 1, 0, 1, 0, 1, 0], [0, 0, 0, 1, 1, 1, 1, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 0, 1, 1, 1, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 1, 1, 0, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1], [0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 1, 1, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0], [0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 0, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 1, 1, 1, 0, 0, 0], [1, 1, 0, 1, 1, 0, 1, 1, 1, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0], [1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 1, 0, 1, 1, 1, 0, 1, 0, 1, 0, 1, 1, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0], [1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 0, 0, 1, 1, 0, 0], [1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 0, 0, 0, 1, 0, 0]], [[1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 0, 0, 0, 1, 0, 0], [1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0, 1, 0, 0, 0, 1, 1, 0, 0], [1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 1, 0, 1, 1, 1, 0, 1, 0, 1, 0, 1, 1, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0], [1, 1, 0, 1, 1, 0, 1, 1, 1, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0], [0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 0, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 1, 1, 1, 0, 0, 0], [0, 0, 0, 1, 1, 1, 1, 1, 0, 0, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 1, 1, 1, 0, 0, 0, 1, 1, 1, 0, 0, 0, 0], [0, 0, 0, 1, 1, 1, 1, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 0, 1, 1, 1, 0, 1, 0, 0, 0, 1, 1, 1, 0, 0, 1, 1, 0, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 0, 0, 1], [0, 0, 1, 1, 1, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 1, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 1, 1, 1, 1, 1, 0, 1, 0, 1, 0], [0, 0, 0, 1, 1, 1, 1, 1, 0, 1, 0, 1, 1, 0, 1, 1, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 0, 0, 1, 0, 1, 1, 1, 0, 0, 1, 0, 1, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0], [1, 0, 1, 0, 1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 1, 1, 1, 0, 1, 1, 0, 0, 1, 0, 1, 1, 1, 0, 1, 0, 0, 1, 0, 0, 0, 0, 1, 0, 1, 0, 1, 0, 1, 1, 0, 0, 1], [1, 0, 1, 0, 1, 1, 1, 1, 0, 1, 0, 1, 0, 0, 1, 1, 0, 1, 1, 1, 1, 0, 1, 1, 0, 1, 0, 0, 0, 1, 1, 0, 1, 0, 1, 0, 1, 0, 1, 1, 1, 1, 0, 0, 0, 0, 1, 0], [1, 0, 1, 0, 1, 1, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 1, 1, 0, 0, 1, 1, 1, 0, 1, 0, 0, 1, 1, 0, 0, 0, 0, 0, 0, 0, 0, 1, 0, 1, 1, 0, 0, 1, 1, 1], [1, 1, 1, 0, 0, 1, 1, 0, 1, 1, 0, 1, 0, 0, 1, 1, 0, 1, 1, 1, 0, 1, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 1, 0, 0, 0, 1, 1, 0, 0, 0, 0, 0, 1, 1], [1, 1, 1, 0, 0, 1, 0, 0, 1, 1, 0, 1, 0, 1, 1, 0, 0, 1, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 0, 0, 1, 1, 0, 1, 1, 0, 0, 0, 1, 0, 1, 0, 0, 0, 1, 1, 1, 1], [1, 1, 1, 1, 0, 0, 0, 0, 1, 0, 1, 1, 0, 1, 1, 0, 0, 1, 1, 1, 0, 1, 1, 0, 1, 1, 1, 1, 1, 0, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 1, 0, 0, 1, 0, 1, 0, 1], [1, 1, 1, 0, 0, 0, 0, 0, 1, 0, 1, 1, 1, 1, 1, 0, 0, 1, 1, 0, 0, 1, 1, 0, 0, 0, 0, 1, 0, 0, 0, 0, 0, 0, 1, 1, 0, 0, 1, 0, 1, 1, 0, 1, 0, 1, 0, 1]]]

    def permute(self, lst, tb):
        return [lst[i-1] for i in tb]

    def f(self,riti,subkeyi):
        tmp = [i^j for i,j in zip(subkeyi,self.permute(riti,DES.E))]
        return  self.permute(sum([[int(l) for l in str(bin(DES.Sbox[i][int(str(tmp[6*i])+str(tmp[6*i+5]),2)][int("".join(str(j) for j in tmp[6*i+1:6*i+5]),2)])[2:].zfill(4))] for i in range(8)],[]),DES.Pbox)

    def des_main(self,m,mark):
        sbkey = self.subkey[0]
        #if mark == 'e' else self.subkey[1]
        # tmp =  self.permute([int(i) for i in list((m).ljust(64,"0"))],self.IP)
        tmp =  [int(i) for i in list((m).ljust(64,"0"))]
        global kkk
        print(kkk)
        for i in range(kkk):
            tmp = tmp[32:] + [j^k for j,k in zip(tmp[:32],self.f(tmp[32:],sbkey[i if mark != 'd' else kkk-1-i]))]
        return "".join([str(i) for i in self.permute(tmp[32:]+tmp[:32],self.IP_re)])

    def des_encipher(self,m):
        m = "".join([bin(ord(i))[2:].zfill(8) for i in m])
        des_en = self.des_main(m,'e')
        return "".join([chr(int(des_en[i*8:i*8+8],2)) for i in range(8)])

    def des_decipher(self,c):
        c = "".join([bin(ord(i))[2:].zfill(8) for i in c])
        des_de = self.des_main(c,'d')
        return "".join([chr(int(des_de[i*8:i*8+8],2)) for i in range(8)])

def test():
    import base64
    global kkk
    while kkk >=0:
        desobj = DES()
        # cipher = desobj.des_encipher("12345678")
        cipher = '\x01\x19\xe1+\x92\xd9\x15%'
        message1 = desobj.des_decipher(cipher)
        print(message1)
        kkk -= 1
if __name__=='__main__':
    test()

Decryption results (partial):

14
t-ÏEÏx§
13
y0ur9Ood
12
µp^Ûé=¹
11
)Á`rûÕû

We can see that n is 13, and the flag is flag{y0ur9Ood}

References¶

Tsinghua University graduate course on Data Security slides
https://en.wikipedia.org/wiki/Data_Encryption_Standard
