DUMP and IAT Reconstruction

Principle

After finding the program's OEP, we need to dump the program and rebuild the IAT. IAT stands for Import Address Table, whose entries point to the actual addresses of functions.

Example

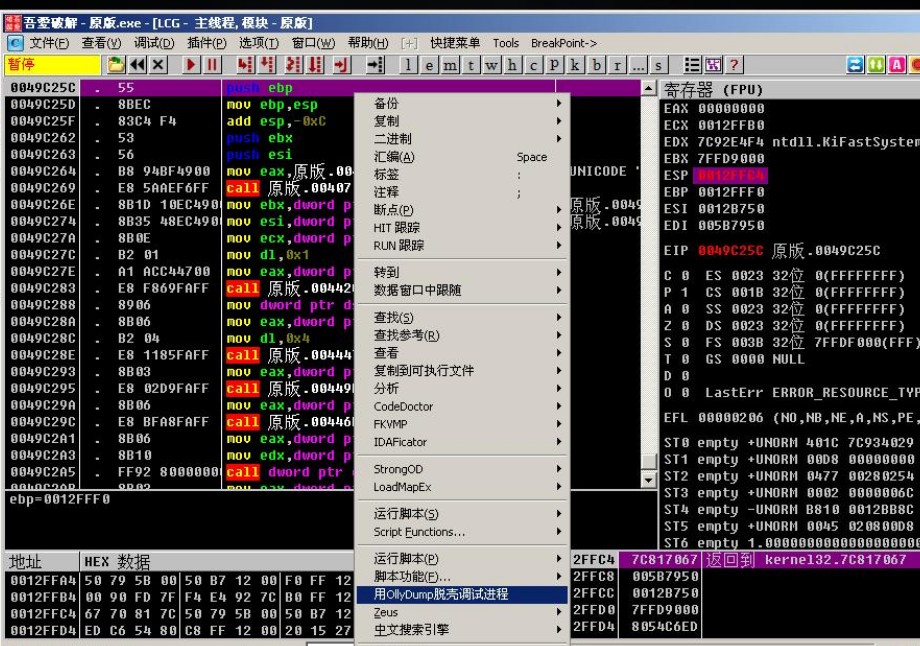

For instance, as shown below, we have found the OEP and reached the program's true entry point. Now we need to dump the program. We right-click and select "Dump debugged process with OllyDump" (though you can also use LoadPE to perform the dump):

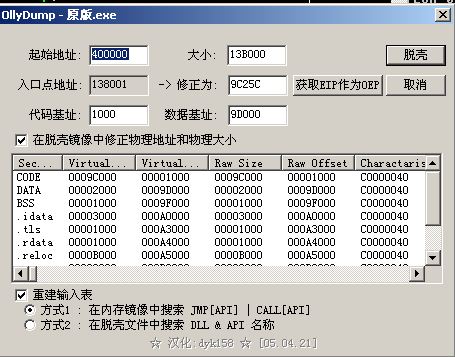

A window pops up. Check whether the addresses are correct — mainly verify that the Entry Point Address is selected correctly. Then uncheck Rebuild Import Table.


Name the dumped file — in my case I named it dump.exe. Let's try running dump.exe. You'll find that the program cannot run normally. For some simple packers, if you dump the file and find it cannot run properly, and you have confirmed that you found the correct OEP and the decompiled results in IDA look fine, then your first thought should be that there is a problem with the program's IAT. You need to rebuild the IAT.

We need to use ImportREC to help repair the import table.

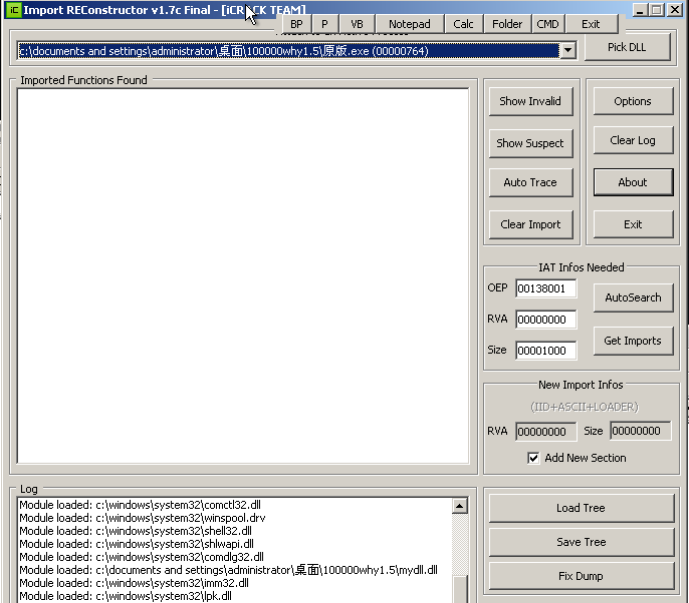

Open ImportREC and select the running process 原版.exe (原版.exe is the process I am debugging in OD, where EIP is currently at the OEP position — do not close this process after using OllyDump). ImportREC needs to know the OEP to repair the import table entry point, which means you need to enter it in the OEP input field on the right side of the window.


As we know, in OllyDbg the current entry point of the program is 0049C25C, and the image base is 00400000.

Therefore, the OEP we need to fill in here is 0009C25C.

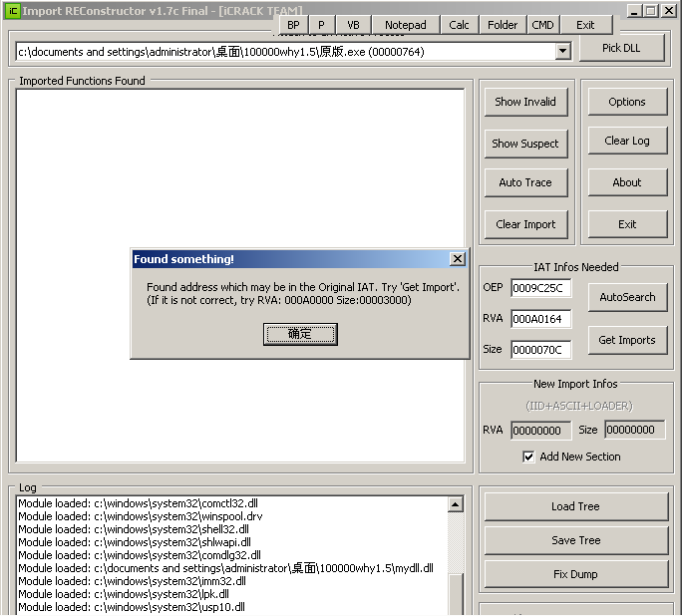

We modify the OEP in ImportREC to 0009C25C and click AutoSearch. A prompt pops up saying "Found possible original IAT address".

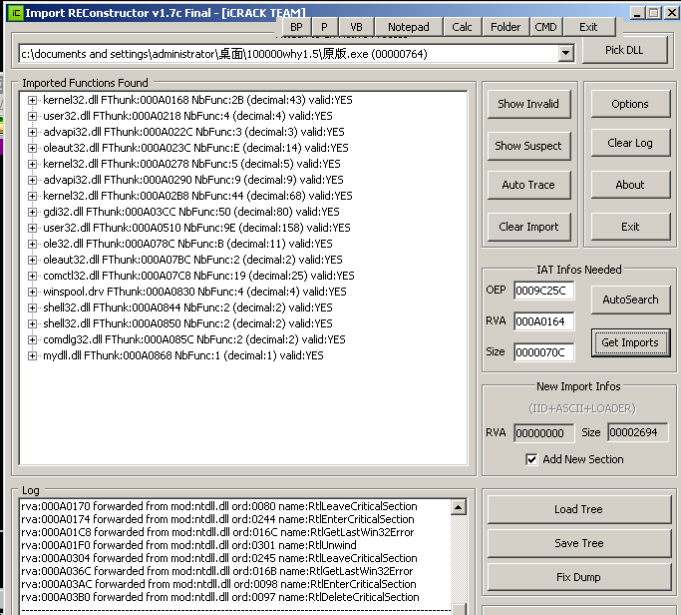

We click the "Get Imports" button to rebuild the IAT. The left side will display the addresses of each imported function in the IAT and whether they are valid. As shown in the figure, ImportREC has found the location of the IAT in memory and detected that all functions are valid.


We click Fix Dump, then open the file previously dumped using the OllyDump plugin, which is the dump.exe file.

Then ImportREC will help restore the import table and generate a dump_.exe file. dump_.exe can run normally.
